PLC control system Roof Panel Roll Forming Machine
- LD
LD-62
- Shandong
- ISO，CE
- Negotiation
- $10,000.00 - $15,000.00 / Set
- D/P,D/A
-
Chen2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Product Description
Metal Roof Ridge Roll Forming Machine With Trapezoidal Type Characteristic
1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.
5. One year warranty.
6. we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7. One roll forming machine only can produce one profile.
Technical parameters
|
ROOF PANEL ROLL FORMING MACHINE | ||
| 1 | Suitable to process | Color steel |
| 2 | Width of the raw material | 1200 |
| 3 | Output width | 1000 |
| 4 | Rollers | 16 rows |
| 5 | Power | 4kw+4kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 12-15m/min or 25-35m/min by hydraulic motor |
| 8 | Diameter of the roller | 72mm |
| 9 | Weight | About 4 T |
| 10 | Voltage | 380V 50Hz 3phase |
| 11 | Received table | 4 meters |
| 12 | Raw material of the cutter | Cr12 |
| 13 | Raw material of the roller | Bearing steel |
Contact Us
- Shandong TUOBO Microwave Machinery Co.,Ltd.
- Email[email protected]
- AddressTianqiao District, Jinan, Shandong, China
- Phone(Working Time)
- WhatsApp+8618660125156
22-24 Forming stations Roof Panel Roll Forming Machine

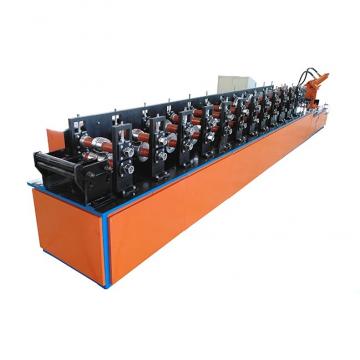

Roof Panel Roll Forming Machine 45# Steel Forging Treatment

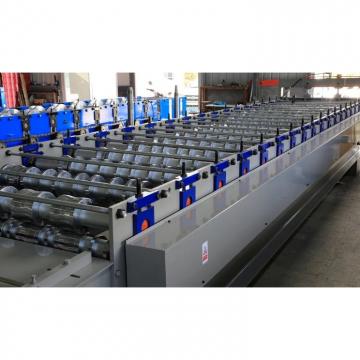

Roof Panel Roll Forming Machine Hydraulic Guide Column

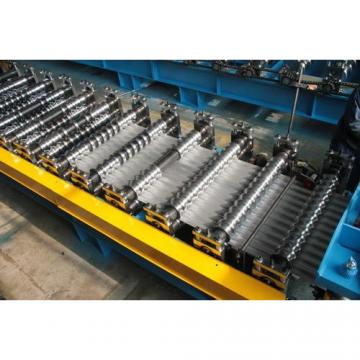

High-grade 45# Steel Roof Panel Roll Forming Machine
